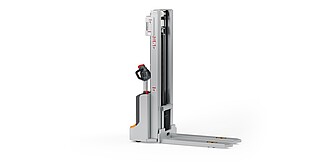

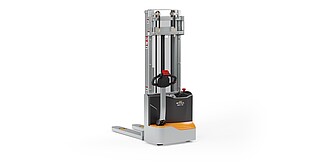

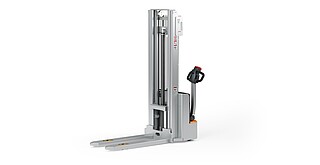

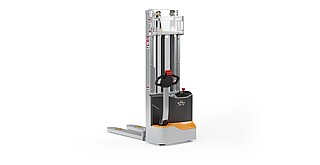

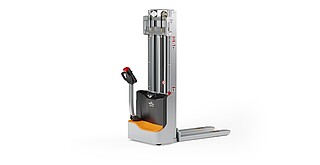

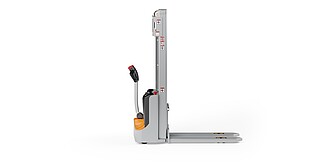

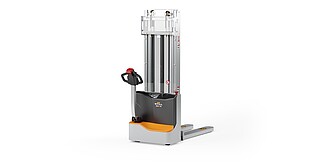

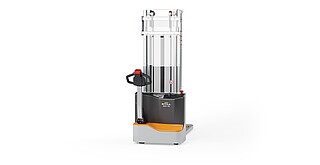

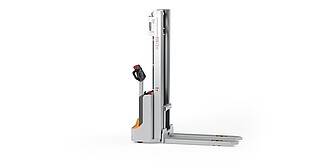

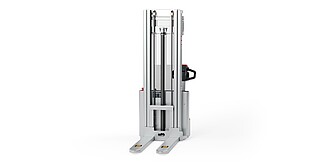

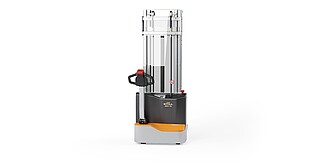

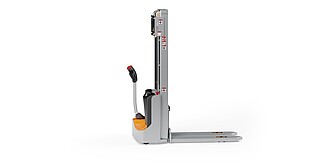

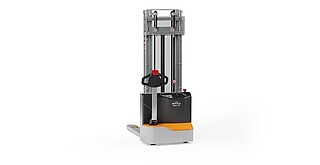

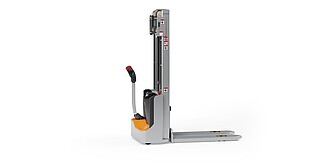

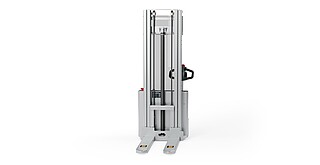

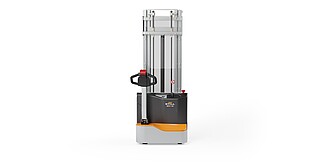

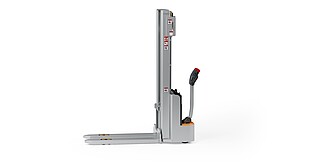

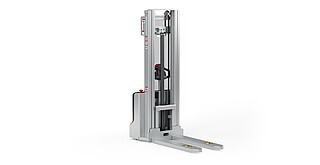

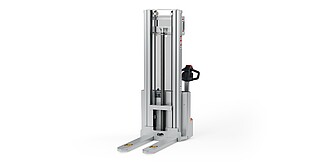

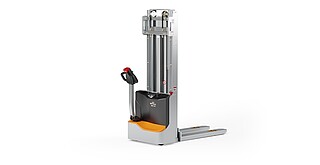

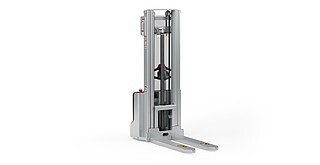

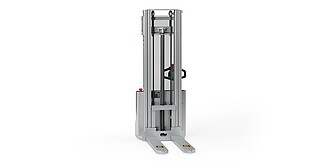

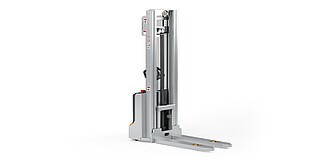

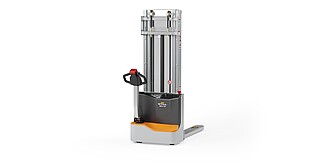

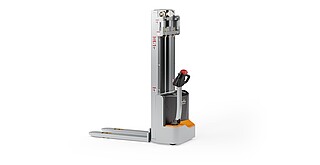

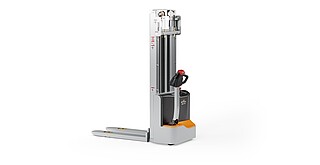

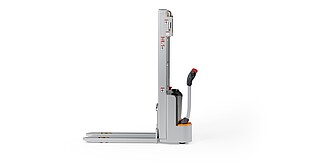

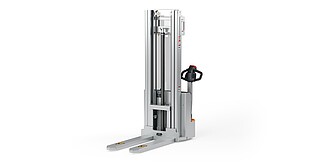

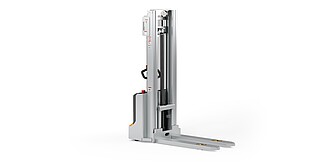

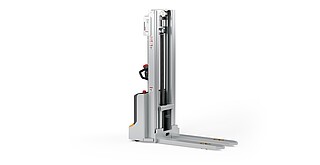

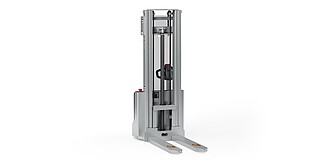

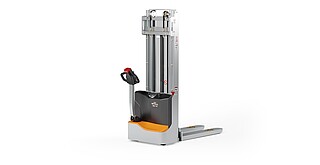

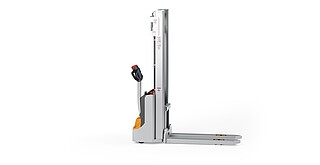

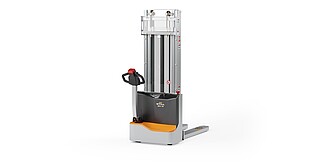

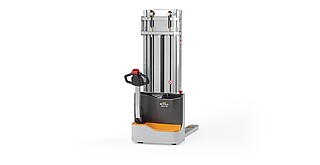

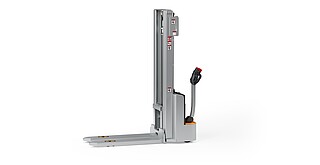

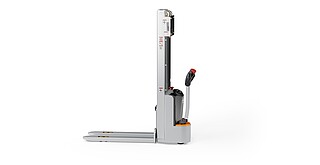

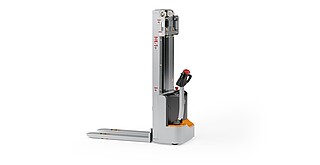

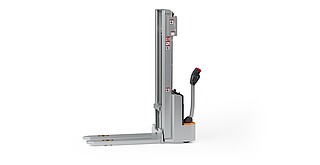

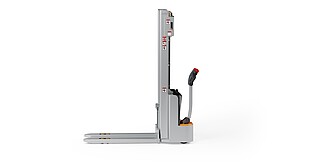

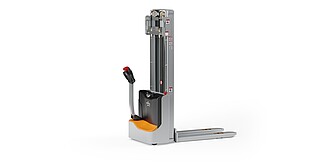

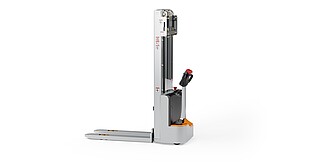

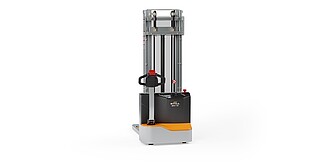

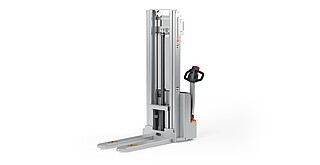

High Lift Pallet Truck ECV 10

Lifting Made Easy

  • Load capacity 1000 kg
  • Rated lift 3227 mm
  • Speed 4.8 km/h

Reaching new heights: With the ECV 10 you can reach a lift height of up to 3,227 mm. Paired with a maximum lifting capacity of up to 1,000 kg, the ECV 10 high lift pallet truck provides ideal support for light and sporadic stacking applications. The compact truck dimensions enable transporting and stacking even in tight working areas and narrow aisles. Two 12 V batteries provide 125 ampere hours for long operating times, and with its built-in charger, the ECV 10 can be recharged at any standard power socket. The LED display shows the current battery charge status and the operating hours, so the operator always has everything in sight. The ECV 10 also performs well in terms of safety. The wide view between the lift profiles allows for an optimum view of the fork tips. In addition, the lowered design of the vehicle frame protects the feet of operators and third parties. The ECV 10 is also equipped with automatic speed reduction based on lift height, to keep you safe when driving. All functions can be operated with equal ease by left- and right-handed operators thanks to the optimised shape of the tiller.

High turnover performance:

Lifting capacity up to 1,000 kg and lift heights up to 3,227 mm


Maximum availability:

Long battery life and built-in charger for easy charging


Manoeuvrable and compact:

Small front end enables excellent manoeuvrability and usage in narrow aisles


JAUNUMS
Nesaistošs piedāvājums
NOMA
Nesaistošs nomas piedāvājums
IZMANTOTS
Mūsu lietotās kravas automašīnas piedāvā

Request to: ECV 10

Please fill out the form below. We will get back to you as soon as possible.

Sveiciens*
Šo vietni aizsargā Friendly Captcha un Draudzīga Captcha konfidencialitātes politika piemēro.

The ECV 10 in detail

The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency

Simply easy

Low service weight
enables smooth steering

Both left- and right-handed
users can intuitively operate all of the driving, lifting and lowering functions

Tandem load rollers
provide for smooth driving behaviour on uneven ground

Low steering forces  when manoeuvring
relieve the stress on the operator

Simply powerful

Effective goods handling
thanks to a load capacity of up to 1,000 kg

High degree of storage compression
thanks to maximum lift heights of up to 3,227 mm on the ECV 10

Maintenance-free batteries
save precious time

Simply safe

Optimum stability
thanks to four-wheel chassis

Optimum view of the forks
thanks to free view mast or mono mast

Fatigue-free operation of all driving, lifting, and lowering functions
for both left- and right-handed operators

The low chassis frame protects the feet
of operators and third parties in public areas

Lift height-dependent speed reduction
increases safety

No battery gassing
– this protects operators and the environment

Simply flexible

Compact front end
enables use in tight working areas and narrow aisles

Possible use on mezzanine floors
due to low service weight

The built-in charger allows for flexible and decentralised charging
of the forklift truck

Simply connected

Battery charge display:
Battery status is quick and easy to read so batteries can be charged in good time whenever necessary


Applications

ECV 10 in use

Lifting capacity up to 1,000 kg and lift heights up to 3,227 mm.

Easy-Grip tiller

Fatigue-free operation thanks to easy-grip tiller for both left- and right-handed operators.

Decentralised charging

The built-in charger ensures maximum availability and enables decentralised charging, with clear visibility of battery status and operating hours thanks to the LED display.

Low weight

Low service weight enables use on mezzanine floors or in freight lifts and low frame contruction for maximum operator safety.

Storage capacity

Lift heights of up to 3,227 mm facilitate a high degree of storage capacity.

Maximum manoeuvrability

Compact front end dimensions for maximum manoeuvrability even in the narrowest working aisles with excellent stability thanks to the 4-wheel undercarriage.

Precise working

Rounded fork tips for fast and precise positioning into the pallets.

Increased productivity

Increased productivity thanks to the optimum view of the forks during stacking in racks.

Request to: ECV 10

Please fill out the form below. We will get back to you as soon as possible.

Sveiciens*
Šo vietni aizsargā Friendly Captcha un Draudzīga Captcha konfidencialitātes politika piemēro.

Media Centre

{{ filteredVideos.length }} Videos

Model Overview

Model
Maximum capacity (kg)
Maximum lift height (mm)
Travel speed (km/h)
Battery voltage (V)
ECV 10 1.000 3.227 4,8 2*12

Downloads

The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
